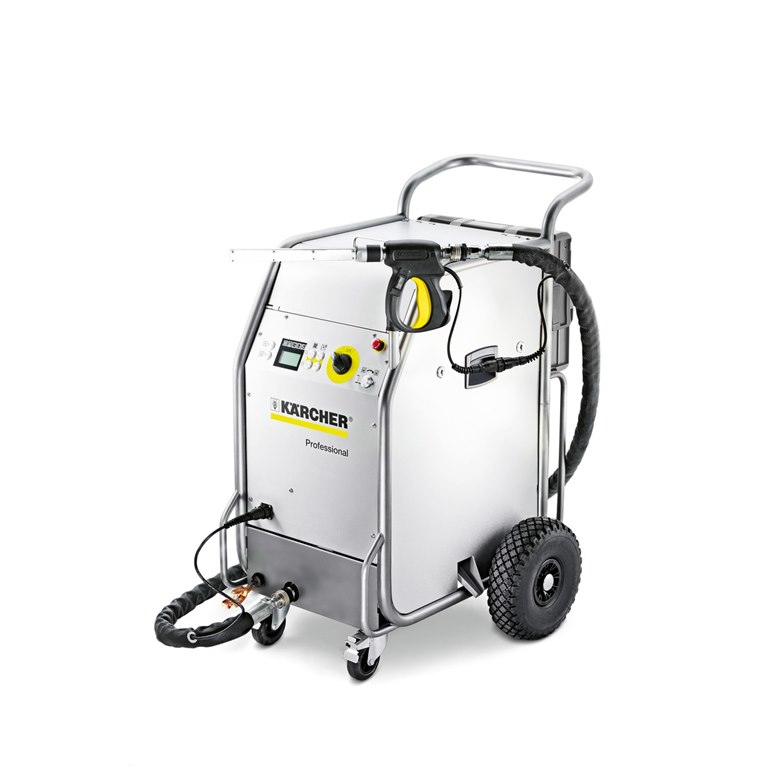

Dry ice blaster IB 15/120
The IB 15/120 provides the highest performance for the toughest blasting jobs. The IB 15/120 can blast up to 120kg of dry ice pellets per hour, at up to 16 bar. This makes it ideal for just about any ice blasting job, thanks to its variable pressure and flow controls. Kärcher’s dry ice blasting technology is a non-aggressive but thorough method of cleaning tools, molds, surfaces, and machines with a minimum of downtime. The dry ice pellets are injected into a jet of compressed air, accelerated to speeds in excess of 150 m/s and then fired at the surface to be cleaned. The abrupt cooling of the surface causes a thermal shock and produces fine cracks in the top layer. Kärcher’s dry ice blasting technology is a non-aggressive but thorough method of cleaning tools, molds, surfaces, and machines with a minimum of downtime. The dry ice pellets are injected into a jet of compressed air, accelerated to speeds in excess of 150 m/s and then fired at the surface to be cleaned. The abrupt cooling of the surface causes a thermal shock and produces fine cracks in the top layer. The dry ice penetrates these cracks, lifts the contaminant from the surface, and returns to the atmosphere as CO gas, leaving only the contaminant behind. Ice blasting uses no chemicals, leaves no wastewater, is environmentally friendly, and can be used in areas where cleaning with water is prohibited or inconvenient.
Features and benefits
Nozzle case support
Spray nozzles and tools are easily accessible from anywhere on the machine. The nozzle case is attached to the side of the machine to protect it from contamination.Outstanding mobility
Optimum machine balancing for maneuvering over uneven ground comfortably. Handles at the front and rear of the machine make it easy to carry on stairs.Automatic residual ice emptying
Residual ice tank emptying at the push of a button prevents the machine from freezing up on completion of work.GRP dry ice container
- Optimum isolation of the dry ice.
- No condensation formation.
- The machine does not freeze.
Efficient air flow in the machine
- The dry ice is transported from the machine to the nozzle without damaging it.
- Maximum cleaning performance with the nozzle.
Integrated ground strap coil
- Easy earthing of the jet object.
- Protection against flash-over from the user to the object.
- Improved jet comfort.
With integrated oil and water separator
Sophisticated trigger gun holder
- The trigger gun is always stored securely.
Integrated storage compartment for nozzles and tools
- Everything is easily accessible directly from the machine.
Specifications
Technical data
| Power rating (kW) | 0.6 |
| Housing/Frame | Stainless steel (1.4301) |
| Air pressure (bar/MPa) | 2 - 16 / 0.2 - 1.6 |
| Quality of air | Dry & oil-free |
| Air flow (m³/min) | 2 - 12 |
| Sound pressure level (dB(A)) | 125 |
| Dry ice capacity (kg) | 40 |
| Dry ice pellets (diameter) (mm) | 3 |
| Dry ice consumption (kg/h) | 30 - 120 |
| Number of current phases (Ph) | 1 |
| Frequency (Hz) | 50 - 60 |
| Voltage (V) | 220 - 240 |
| Weight without accessories (kg) | 91 |
| Weight (with accessories) (kg) | 101.5 |
| Dimensions (L × W × H) (mm) | 1000 x 800 x 1300 |
Equipment
- Nozzle case with foam plastic insert
- Grease for nozzle threads
- Flat jet nozzle
- Flat jet nozzle insert: 8 mm
- Flat wrench (for nozzle change): 2 Piece(s)
- Round jet nozzle, XL, long
- Blasting hose with electrical control wire and quick couplers
- Blasting gun (ergonomic & save)
- Switch for "air only" or "ice and air"
- Electronic control
- With an integrated earth wire rewinder
- Oil and water separator
