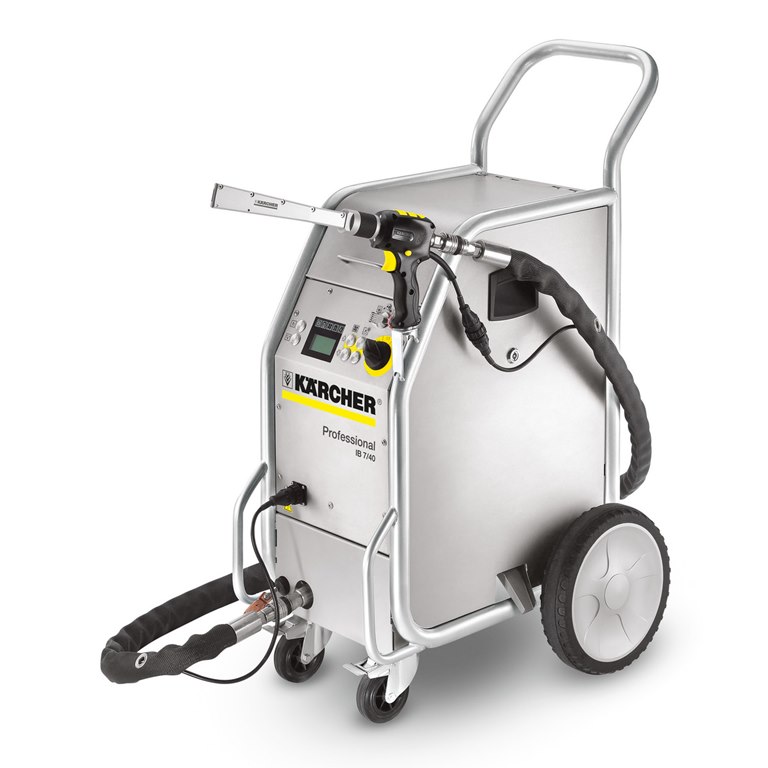

Dry ice blaster IB 7/40 (110V)
The compact IB 7/40 ice blasting machine offers many of the benefits of the larger IB 15/1120 machine but can run from a much smaller compressed air supply, therefore making it ideal for use with in-house compressed air systems. Kärcher’s dry ice blasting technology is a non-aggressive but thorough method of cleaning tools, molds, surfaces, and machines with a minimum of downtime. The dry ice pellets are injected into a jet of compressed air, accelerated to speeds in excess of 150 m/s and then fired at the surface to be cleaned. The abrupt cooling of the surface causes a thermal shock and produces fine cracks in the top layer. Kärcher’s dry ice blasting technology is a non-aggressive but thorough method of cleaning tools, molds, surfaces, and machines with a minimum of downtime. The dry ice pellets are injected into a jet of compressed air, accelerated to speeds in excess of 150 m/s and then fired at the surface to be cleaned. The abrupt cooling of the surface causes a thermal shock and produces fine cracks in the top layer. The dry ice penetrates these cracks, lifts the contaminant from the surface, and returns to the atmosphere as CO gas, leaving only the contaminant behind. Ice blasting uses no chemicals, leaves no wastewater, is environmentally friendly, and can be used in areas where cleaning with water is prohibited or inconvenient. This machine is supplied without a plug.
Features and benefits
Clear display
Clear indication of adjusted values; easy operation thanks to large buttons and electronic control.Automatic residual ice emptying
Residual ice tank emptying at the push of the button prevents the machine from freezing up on completion of work.With integrated oil and water separator
Integrated ground strap coil
- Easy earthing of the jet object.
- Protection against flash-over from the user to the object.
- Improved jet comfort.
GRP dry ice container
- Optimum isolation of the dry ice.
- No condensation formation.
- The machine does not freeze.
Efficient airflow in the machine
- The dry ice is transported from the machine to the nozzle without damaging it.
- Maximum cleaning performance with the nozzle.
Sophisticated trigger gun holder
- The trigger gun is always stored securely.
- Ideal positioning (for removing the nozzles, for example).
Integrated storage compartment for nozzles and tools
- Everything is easily accessible directly from the machine.
Outstanding mobility
- Optimum machine balancing for maneuvering over uneven ground comfortably.
- Handles at the front and rear of the machine make it easy to carry on stairs.
Specifications
Technical data
| Power rating (kW) | 0.6 |
| Compressed-air connection | Claw Coupling (DIN3238) |
| Housing/Frame | Stainless steel (1.4301) |
| Air pressure (bar/MPa) | 2 - 10 / 0.2 - 1 |
| Quality of air | Dry & oil-free |
| Air flow (m³/min) | 0.5 - 3.5 |
| Sound pressure level (dB(A)) | 99 |
| Dry ice capacity (kg) | 15 |
| Dry ice pellets (diameter) (mm) | 3 |
| Dry ice consumption (kg/h) | 15 - 50 |
| Number of current phases (Ph) | 1 |
| Frequency (Hz) | 50 - 60 |
| Voltage (V) | 100 |
| Weight without accessories (kg) | 82 |
| Weight (with accessories) (kg) | 82.3 |
| Dimensions (L × W × H) (mm) | 768 x 510 x 1096 |
Equipment
- Grease for nozzle threads
- Flat jet nozzle
- Flat wrench (for nozzle change): 2 Piece(s)
- Blasting hose with electrical control wire and quick couplers
- Blasting gun (ergonomic & save)
- Dry Ice output is adjustable directly on the blasting gun
- Air Pressure is adjustable directly on the blasting gun
- Switch for "air only" or "ice and air"
- Electronic control
- With an integrated earth wire rewinder
- Oil and water separator
- Tool bag
