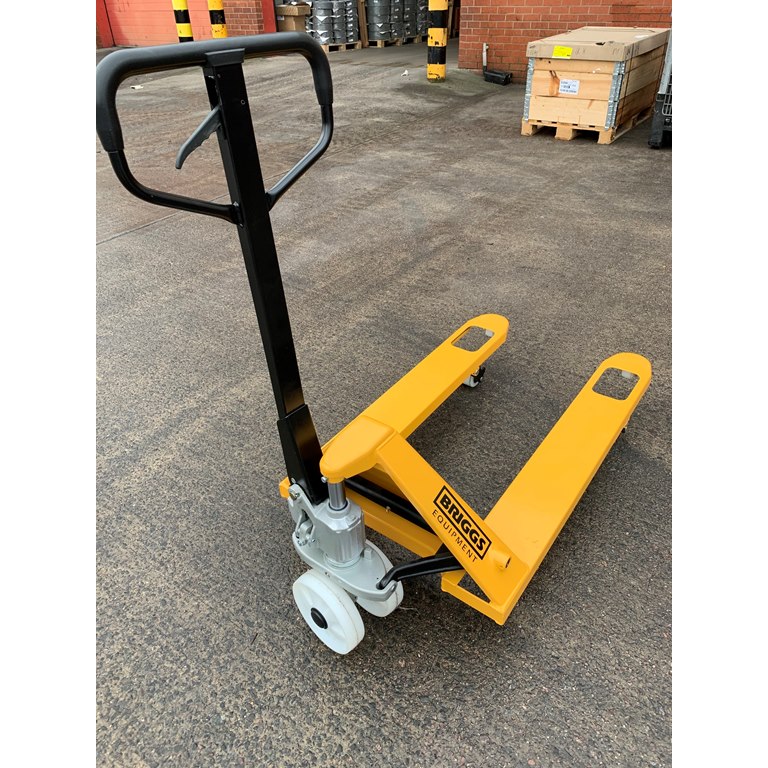

Hand Pallet Truck 540x1150mm

In need of high-quality hand pallet trucks? Then you’ve found the right place here at Briggs Equipment. Our 540x1150mm hand pallet truck is an efficient choice for any warehouse!

A pallet truck, also known as a pallet jack, makes transporting and lifting loaded pallets easy and efficient. This pallet truck also weighs the goods, enabling a smooth and productive workflow. This standard pallet jack has a simple and reliable hydraulic system with built-in automatic neutral position valve. As well as sturdy, rounded forks and a strong tiller arm, this pallet trolley features an ergonomic steering handle that lets the operator work comfortably. Use this hand jack to lift manually by pumping the tiller arm. Time to raise productivity levels with this manual pallet truck. It will lift, lower and transport pallets swiftly around the warehouse or store. A cost-effective solution to every logistic problem. This pallet truck is equipped with a nylon steering wheel. They’re lightweight and resistant to shocks, water and cleaning chemicals. Nylon wheels don’t leave marks, so there’s no need to worry about damaging floors. And it’s easily cleaned, making it ideal for the food industry. Bear in mind that although it's highly shock-resistant, this wheel doesn’t absorb the shocks, making it slightly louder than other wheels. This pallet truck is equipped with nylon fork wheels. They’re lightweight and resistant to shocks, water and cleaning chemicals. Nylon wheels don’t leave marks, so there’s no need to worry about damaging floors. And they’re easily cleaned, making them ideal for the food industry. Bear in mind that although they’re highly shock-resistant, these wheels don’t absorb shocks, making them slightly louder than other wheels. This pallet truck is made of steel. It's tough, durable and commonly used for transporting goods in warehouses.

Benefits

Say goodbye to back pain; this hand pallet truck takes care of all the hard work
Ergonomic handle
Overload valve for added safety and protection
Nose wheels make it easy to position pallets
Small turning circle for increased manoeuvrability
Cost-effective way of moving pallets
Cost-effective way of increasing efficiency
The nylon steering wheel is lightweight and shock-resistant
No damage to the floor
The nylon fork wheels are shock-resistant
The wheels don't leave marks
Steel pallet truck
Very tough
Extremely durable

Other sizes and wheel specs available, please enquire for more information.

Specification

Type of control: Manual

Load capacity (kg): 2500

Centre of gravity (mm): 575

Type of pump: Standard

Brake present: NO

Colour of the pallet truck: Yellow

RAL colour of the pallet truck: RAL1003 (SIGNAL YELLOW)

Minimum height (mm): 80

Lifting height (mm): 200

Maximum height (with handle) (mm): 1230

Total length of the pallet truck (mm): 1550

Length of the forks (mm): 1150

Control length (mm): 400

Centre distance (mm): 327

Thickness of the forks (mm): 48

Total width of the pallet truck (mm): 540

Width of the forks (mm): 160

Closed forks: NO

Width across the forks (mm): 540

Width between the forks (mm): 220

Minimum aisle width (mm): 1750

Number of fork wheels: 4

Material of the fork wheels: Nylon

Material of the steering wheel: Nylon

Material of the pallet truck: Steel

Material of the pump: Cold galvanized steel (casted)
